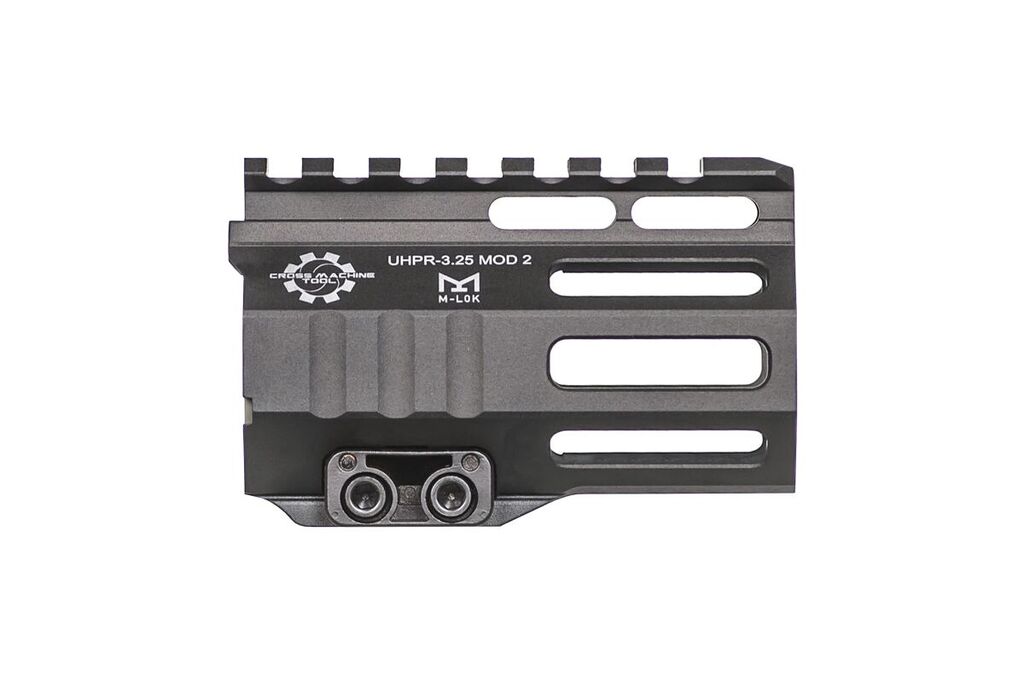

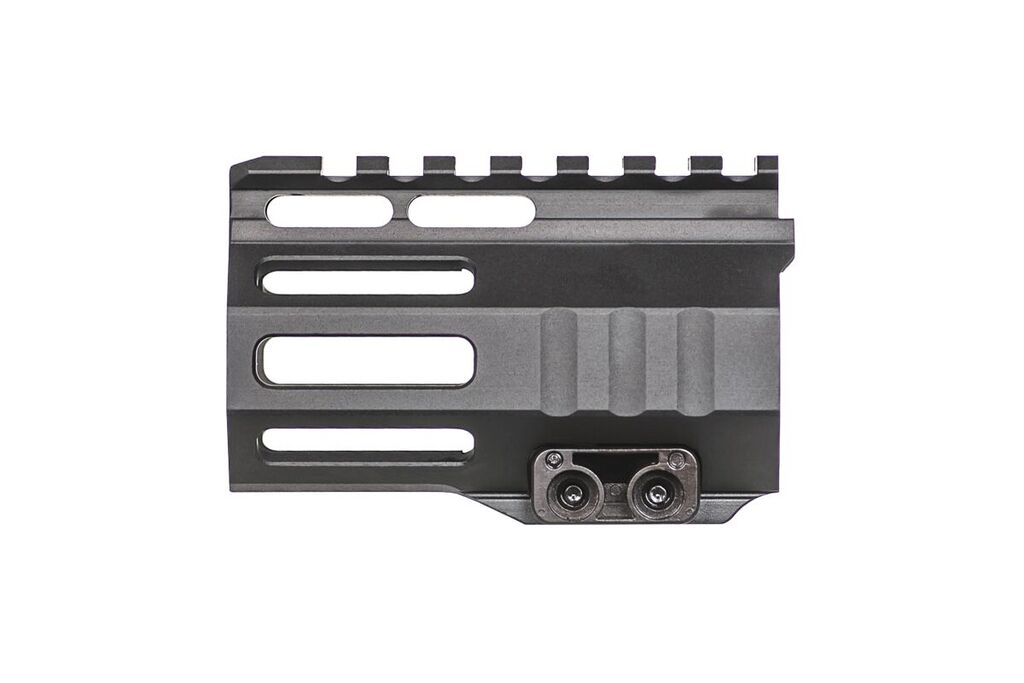

UHPR-3.25 MOD 2
3.25 in. free-float micro handguard for AR-15 pistol-length builds. Continuous top rail, M-LOK, no barrel-nut timing.
Limit 5 per order.
Part no. CMT-UHPR-325-M2
What goes with this rail.
This rail mounts to a mil-spec AR-15 upper with our barrel nut, no timing. If the receivers are still to buy, these are the sets we cut and finish together.
- CMT parts for this build
- TANO GEN 3 UHP-15A Ambi Billet Combo Receiver Set — Matched GEN 3 UHP-15A ambidextrous lower and UPUR upper, cut and finished together in CMT's Tanodized hardcoat.
- AR-15 Billet Combo Receiver Set — Matched GEN 3 UHP-15 lower and UPUR-1 upper, both 7075-T6 billet.
- GEN 3 UHP15A Ambi Billet Combo Receiver Set — Ambidextrous GEN 3 UHP15A lower matched to a UPUR-1 upper.
- J.A.G. .625 Low-Profile Gas Block — Low-profile .625 in. journal gas block for AR-15 and AR-10 barrels.
- J.A.G. .750 Low-Profile Gas Block — Low-profile .750 in. journal gas block for AR-15 and AR-10 barrels.
The UHPR-3.25 MOD 2 is a short free-float rail for a pistol-length gas build, where there is very little barrel in front of the receiver to work with. It keeps the handguard off the barrel and still leaves the gas block accessible.
CMT's barrel nut does not have to be timed. No shim stack, no clocking the nut to clear the gas tube — torque the nut, slide the rail on, clamp it.
Fitment
- Mil-spec AR-15 flat-top upper receiver
- Pistol-length gas systems on short barrels
- Clears low-profile gas blocks up to .750 in. journal diameter
- Will not clear an A2 front sight base
Check the fit before you buy. Thread pitch, journal diameter and gas-system length all have to match the barrel you are building on. Installed, fired or modified parts cannot be returned.
| Platform | AR-15 |
|---|---|
| Rail length | 3.25 in. |
| Series | HDX MOD 2 |
| Attachment | M-LOK |
| Top rail | Continuous MIL-STD-1913 |
| Barrel nut | CMT proprietary — no timing, no shims |
| Gas system | Pistol |
| Gas block clearance | Low-profile, up to .750 in. |
| Material | 6061 extruded aluminum |
| Finish | Type III hardcoat anodize (MIL-A-8625 Type III, Class 2), black |
| Origin | Machined in Tennessee, USA |
