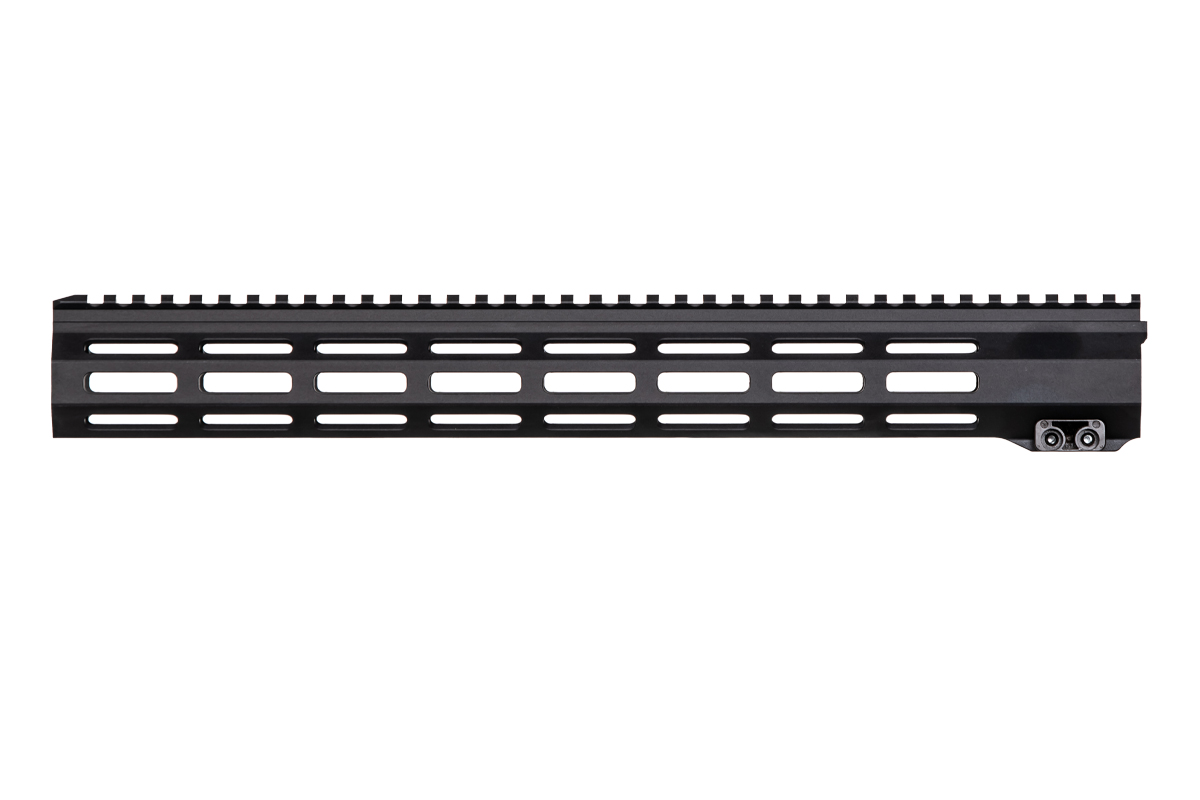

HDM 15.0 Rail
15.0 in. free-float handguard for AR-15 uppers. Suits a 16–18 in. barrel on a mid-length or rifle gas system. Continuous top rail, M-LOK, no barrel-nut timing.
Part no. CMT-HDM-150
What goes with this rail.
This rail mounts to a mil-spec AR-15 upper with our barrel nut, no timing. If the receivers are still to buy, these are the sets we cut and finish together.
- CMT parts for this build
- TANO GEN 3 UHP-15A Ambi Billet Combo Receiver Set — Matched GEN 3 UHP-15A ambidextrous lower and UPUR upper, cut and finished together in CMT's Tanodized hardcoat.
- AR-15 Billet Combo Receiver Set — Matched GEN 3 UHP-15 lower and UPUR-1 upper, both 7075-T6 billet.
- GEN 3 UHP15A Ambi Billet Combo Receiver Set — Ambidextrous GEN 3 UHP15A lower matched to a UPUR-1 upper.
- J.A.G. .625 Low-Profile Gas Block — Low-profile .625 in. journal gas block for AR-15 and AR-10 barrels.
- J.A.G. .750 Low-Profile Gas Block — Low-profile .750 in. journal gas block for AR-15 and AR-10 barrels.
The HDM 15.0 Rail is a free-float HDM handguard machined from 6061 extruded aluminum and finished in black Type III hardcoat. It carries a continuous MIL-STD-1913 top rail that indexes flush with a flat-top upper, and M-LOK on every flat below the top rail.
CMT's barrel nut does not have to be timed. There is no shim stack to chase and no clocking the nut to clear the gas tube — torque the nut, slide the rail on, and clamp it. That removes the single most common source of a canted rail and lets the same nut come back off for barrel work without a fight.
Fitment
- Mil-spec AR-15 flat-top upper receiver
- Intended for a 16–18 in. barrel running a mid-length or rifle-length gas system
- Clears low-profile gas blocks up to .750 in. journal diameter
- Will not clear a standard A2 front sight base or a clamp-on gas block with an oversized body
In the box
- HDM 15.0 Rail
- CMT barrel nut
- Clamp hardware and wrench flats sized for a standard armorer's wrench
Installation. Fit and torque the barrel nut to the value in the instructions with the upper in a proper vise block and reaction rod. Confirm the gas tube passes through the nut without contact before clamping the rail, and verify gas-block alignment before the first live round. If you are not equipped to torque a barrel nut, have a qualified gunsmith install it.
| Platform | AR-15 |
|---|---|
| Rail length | 15.0 in. |
| Series | HDM |
| Attachment | M-LOK |
| Top rail | Continuous MIL-STD-1913 |
| Barrel nut | CMT proprietary — no timing, no shims |
| Barrel length | 16–18 in. |
| Gas system | Mid-length or rifle |
| Gas block clearance | Low-profile, up to .750 in. |
| Material | 6061 extruded aluminum |
| Finish | Type III hardcoat anodize (MIL-A-8625 Type III, Class 2), black |
| Origin | Machined in Tennessee, USA |
